301 CSA-CGA Stainless Steel Ball Valves
Care to learn more about our many ball valve solutions?
Contact our sales and support team today to discover your perfect ball valve solution!
CALL US
1 (877) 683-2200
EMAIL US
Western Gauge & Instruments (WGI) prides itself on being industry innovators in 301 CSA-CGA Stainless Steel Ball Valves. By continually offering and using the latest in technology and measurement solutions, WGI has a long-standing reputation of providing top quality products using the best of materials and workmanship.
All WGI 301 CSA-CGA Stainless Steel Ball Valves products are manufactured in an ISO 9001 Certified facility and have appropriate Canadian Registration Numbers (CRN) where applicable.

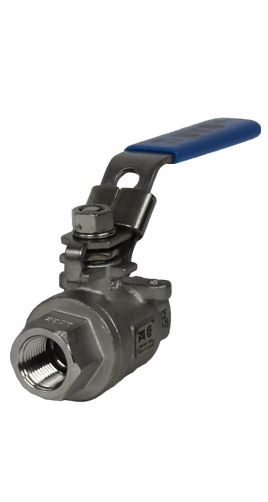

301 Stainless Steel Ball Valve
Product Description:
WGI ball valves combine quality performance at an affordable price. Each valve carries approvals that will cover most valve applications. These valves are used in different industries for a variety of applications.
Specifications:
Pressure Rating
• 1/4″ — 1″: 2,000 PSI, 1¼” — 2″: 1,500 PSI
Porting
• Full port
Temperature Rating
• -40oF — 392oF (-40oC — 200oC)
Body Material
• ASTM A351-CF8M
Approvals
• NACE, CSA/CGA3.16 CRN
Features
• Blowing-Out Proof Stem, Locking Handle, Tapped and Drilled Mounting Pad
Our WGI 301 CSA-CGA Stainless Steel Ball Valves have the following Product Specifications, Build of Materials, and Dimensions:
| SPECIFICATIONS | |
|---|---|
| Pressure Rating | 1/4″ — 1″: 2,000 PSI, 1¼” — 2″: 1,500 PSI |
| Porting | Full port |
| Temperature Rating | -40°F — 392°F (-40°C — 200°C) |
| Body Material | ASTM A351-CF8M |
| Approvals | NACE, CSA/CGA3.16 CRN |
| Features | Blowing-Out Proof Stem, Locking Handle, Tapped and Drilled Mounting Pad |
| MATERIAL | ||
|---|---|---|
| Item | Parts | Material |
| 1 | Body | ASTM A351-CF8M |
| 2 | Cap | ASTM A351-CF8M |
| 3 | Ball | ASTM A351-CF8M |
| 4 | Stem | ASTM A276-316 |
| 5 | Gland Nut | AISI 304 |
| 6 | Seat | PTFE / RTFE |
| 7 | Seal | PTFE |
| 8 | Packing | PTFE / RTFE |
| 9 | Thrust Washer | PTFE |
| 10 | Spring Washer | AISI 304 |
| 11 | Nut | AISI 304 |
| 12 | Handle | AISI 304 |
| 13 | Handle Sleeve | PVC |
| 14 | Locking Device | AISI 304 |
| DIMENSIONS | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NPS | D | L | L1 | H | H1 | H2 | H3 | W | S | M | E | T | Weight(lb) |
| 1/4″ | 0.46 | 2.38 | 0.55 | 1.97 | 0.91 | 0.63 | 0.41 | 4.02 | 0.20 | 1.10 | M5 | 5/16″ W | 0.60 |
| 3/8″ | 0.51 | 2.38 | 0.55 | 1.97 | 0.91 | 0.63 | 0.41 | 4.02 | 0.20 | 1.10 | M5 | 5/16″ W | 0.60 |
| 1/2″ | 0.59 | 2.52 | 0.55 | 1.97 | 0.91 | 0.67 | 0.41 | 4.02 | 0.20 | 1.10 | M5 | 5/16″ W | 0.70 |
| 3/4” | 0.79 | 3.03 | 0.87 | 2.44 | 1.14 | 0.87 | 0.53 | 4.72 | 0.26 | 1.38 | M5 | 3/8″ W | 1.20 |
| 1″ | 0.98 | 3.54 | 0.87 | 2.97 | 1.34 | 0.94 | 0.61 | 6.26 | 0.31 | 1.38 | M5 | 7/16″ W | 1.90 |
| 1¼” | 1.26 | 3.94 | 0.94 | 3.19 | 1.34 | 0.87 | 0.61 | 6.26 | 0.31 | 1.54 | M5 | 7/16″ W | 2.80 |
| 1½” | 1.50 | 4.65 | 0.94 | 3.86 | 1.54 | 1.02 | 0.69 | 7.40 | 0.35 | 1.50 | M5 | 1/2″ W | 4.40 |
| 2” | 1.97 | 5.43 | 0.94 | 4.25 | 1.54 | 1.02 | 0.69 | 7.40 | 0.35 | 1.50 | M5 | 1/2″ W | 6.90 |
| 2½” | 2.56 | 6.56 | 1.38 | 5.35 | 2.28 | 1.65 | 1.20 | 9.65 | 0.47 | 2.17 | M5 | 3/4″ W | 13.20 |
| 3″ | 3.15 | 7.60 | 1.38 | 5.79 | 2.28 | 1.57 | 1.20 | 9.65 | 0.47 | 2.17 | M5 | 3/4″ W | 22.30 |
| 4″ | 3.94 | 10.24 | 1.97 | 7.20 | 3.31 | 2.28 | 1.65 | 12.60 | 0.63 | 2.36 | M5 | 1″ W | – |
| Thread Type: ASME B1.20.1 (NPT) | Dimensions: inch | |||||||||||||
